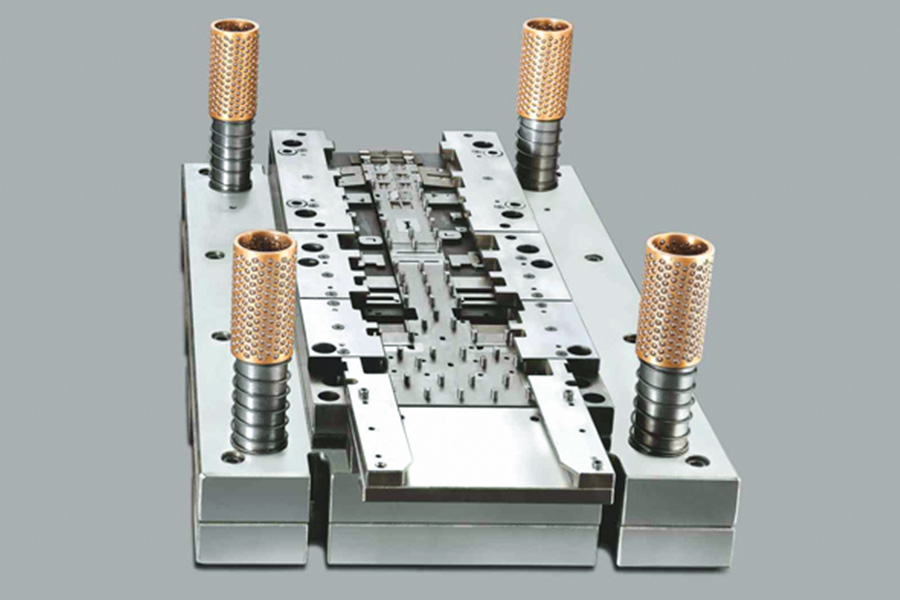

Custom Progressive Die Stamping
Optimize your production with our high-precision progressive die services. We specialize in transforming complex metal strips into finished components with exceptional repeatability and cost-efficiency for high-volume runs.
Precision: Tolerances as tight as $\pm 0.01\text{mm}$.
Efficiency: High-speed presses for rapid, continuous production.
Versatility: Multi-stage forming, blanking, and piercing in a single pass.
Value: Significant cost reduction for large-scale manufacturing.
Progressive Die Stamping for Volume Production

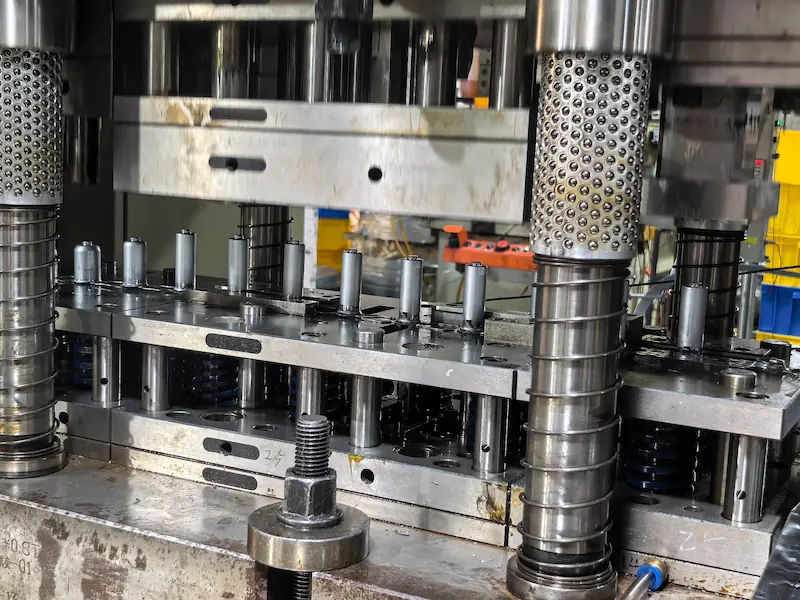

Our progressive stamping process is developed around your part geometry, material, tolerance requirements, and annual demand. Each die station performs a specific operation while the metal strip advances through the press, allowing complex parts to be produced efficiently with consistent dimensions.

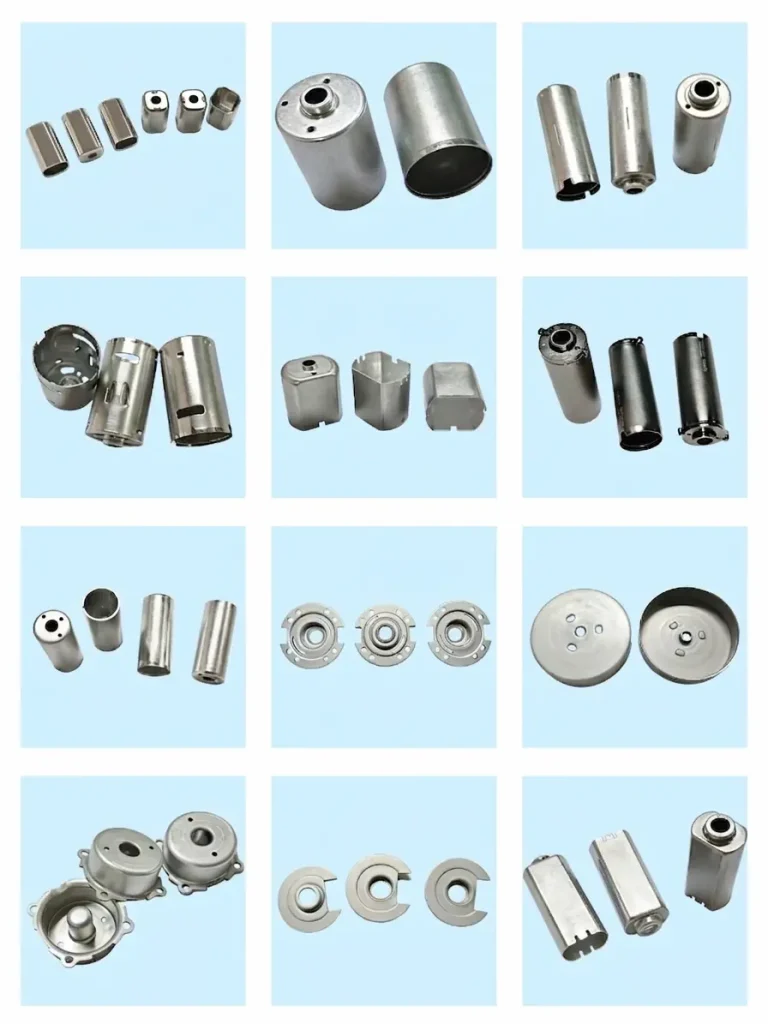

This process is suitable for precision brackets, clips, terminals, covers, motor components, electronic parts, automotive components, and other small to medium-sized stamped parts.
From Die Development to Volume Production
- Drawing Review and DFM
We evaluate part geometry, material, tolerance, forming requirements, and expected volume. - Strip Layout and Die Design
Engineers plan the station sequence, material utilization, feeding pitch, and forming process. - Tooling Build and Trial
The die is manufactured, assembled, tested, and adjusted before sample submission. - Sample Approval
Key dimensions, appearance, function, and material requirements are verified. - Volume Production
Approved tooling moves into controlled production with scheduled inspection and maintenance.
Our Progressive Stamping Capabilities

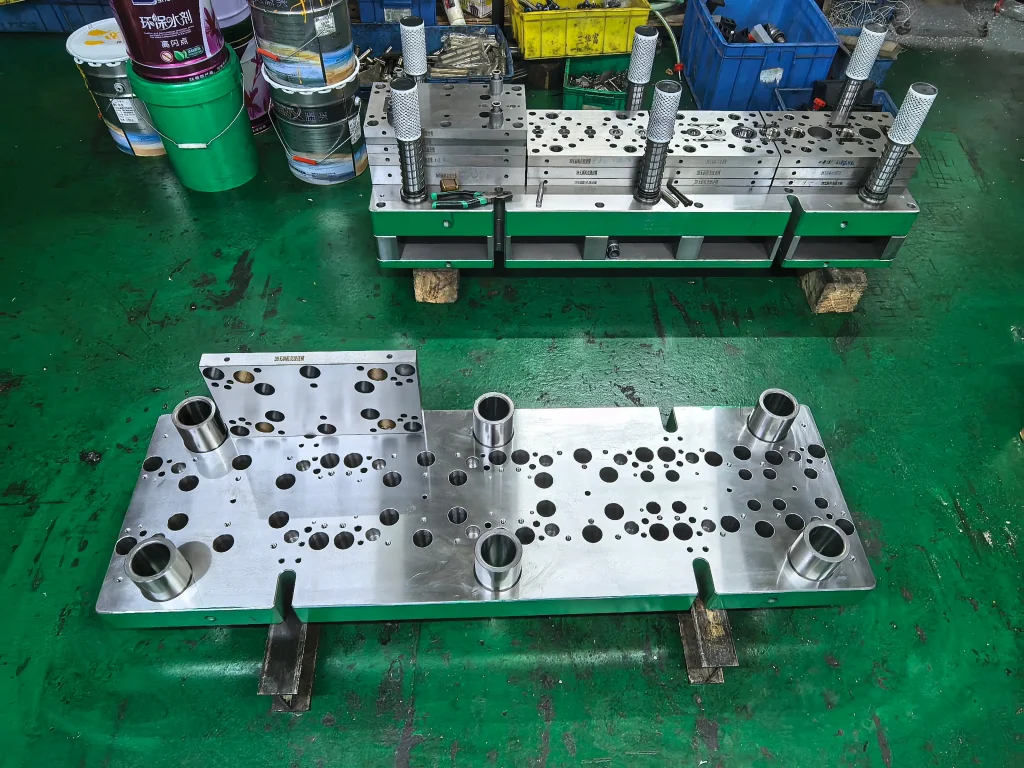

- Multi-Station Tooling: Blanking, piercing, bending, forming, coining, embossing, and cut-off can be integrated into one die.
- In-House Tooling Support: Die design, manufacturing, trial, modification, repair, and maintenance.
- Material Utilization: Strip layouts are optimized to reduce unnecessary material waste.
- Consistent Production: Tool-controlled processes support repeatable dimensions across production batches.
- Secondary Operations: Deburring, cleaning, surface finishing, inspection, and assembly support are available.
- Quality Inspection: Critical dimensions and appearance requirements are controlled throughout production.
Progressive Die Manufacturing Strength
Custom Die Development
Progressive dies are developed based on part geometry, material properties, tolerance requirements, and production volume.Multi-Process Integration
Blanking, piercing, bending, forming, embossing, coining, and cut-off operations can be integrated into one continuous stamping process.Tool Maintenance and Repair

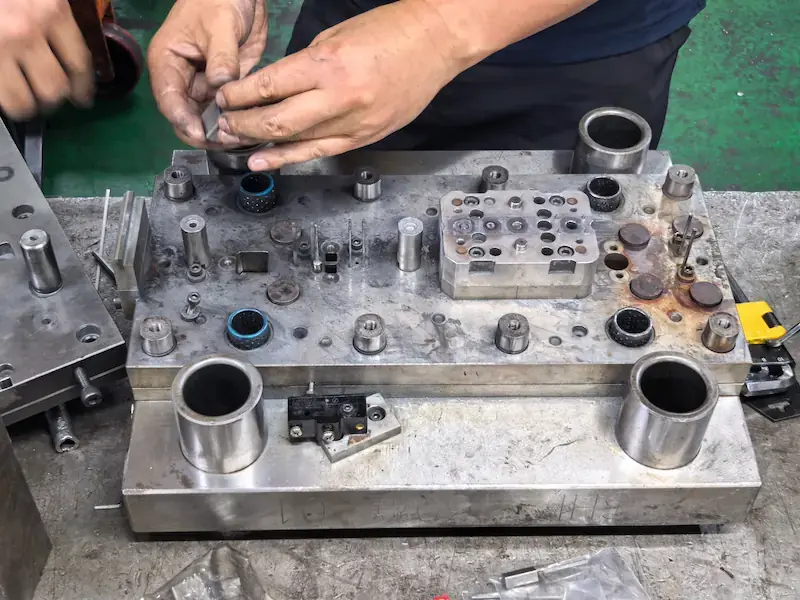

Regular inspection, sharpening, repair, and component replacement help maintain stable production and consistent part quality.Production Quality Control
Raw materials, first-off samples, in-process parts, and finished components are inspected according to project requirements.
Our Progressive Die Capabilities
Tolerance
±0.1mm for high-stability performance.
Material Range
Comprehensive support for Stainless, Brass, Aluminum & Specialty Alloys.
Efficiency
Multi-stage forming optimized for complex 3D structures.
Service
Integrated DFM analysis and in-house die maintenance.

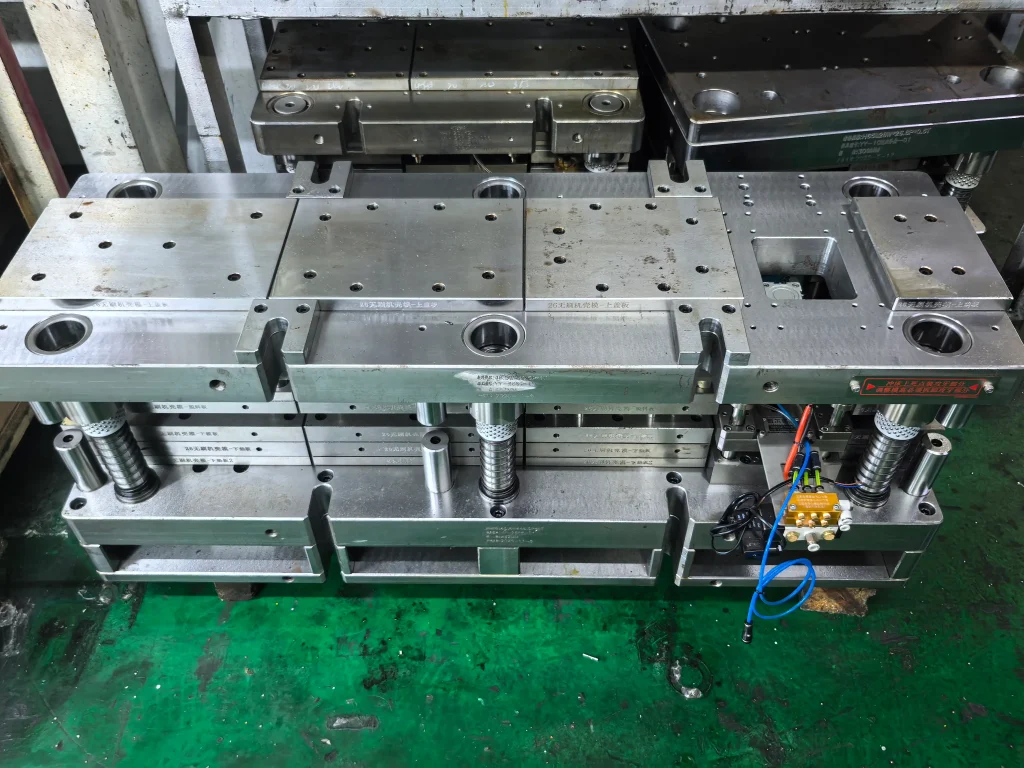

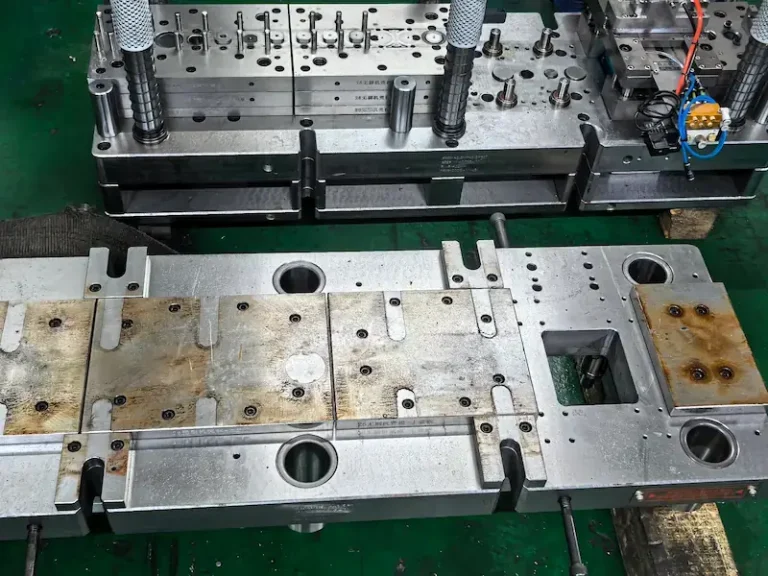

Custom Progressive Die Tooling
Why Partner With Us?
In-House Tooling Design: Our expert engineers design and maintain progressive dies in-house to guarantee tool life and part precision.
Cost-Effective High Volume: Optimized for runs of 50,000+ pieces, reducing labor costs and material waste.
Complex Geometries: Capability to perform punching, coining, bending, and drawing in a single continuous process.

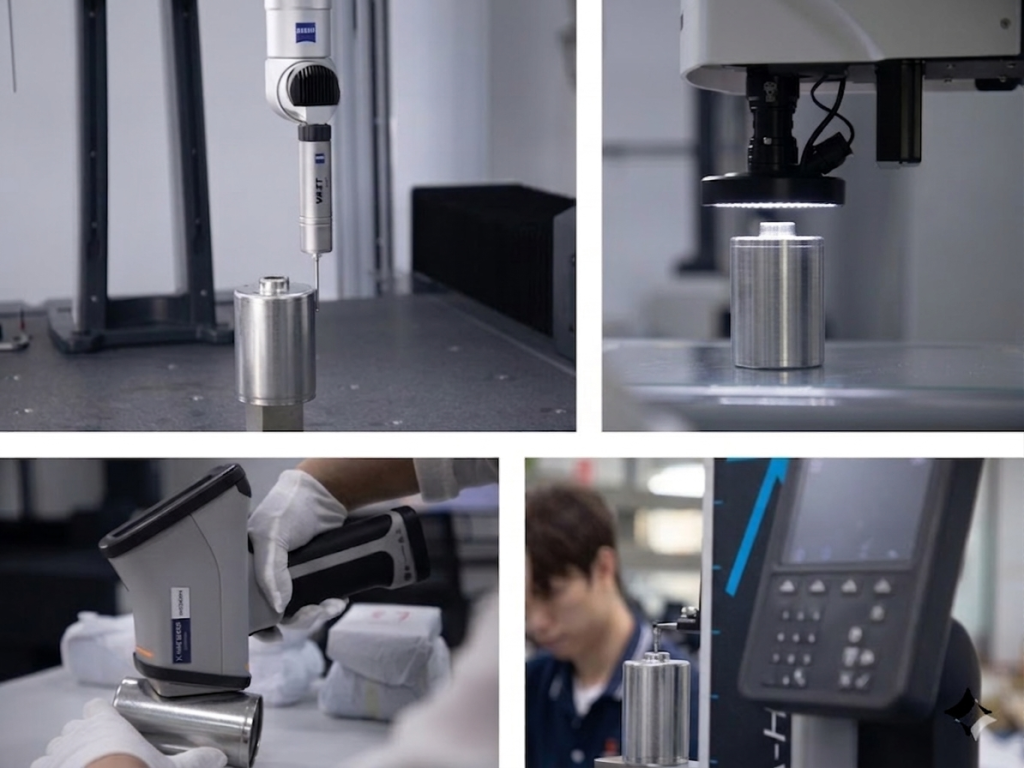

Strict Quality Control: ISO certified processes with automated optical inspection (AOI) to ensure zero-defect delivery.
Frequently Asked Questions (FAQ)
It is ideal if you require large volumes (typically over 50,000 units) and the part has complex features like multiple bends or holes. If your part is very large or requires deep drawing at specific angles, we might suggest Transfer Die Stamping instead.
For standard precision dies, the design and fabrication usually take 4 to 8 weeks, depending on the complexity. This includes the DFM analysis, tool build, and initial T1 sample approval.
We provide Lifetime Tooling Maintenance. Once we build the die for your project, we perform routine sharpening, lubrication, and part replacements at our own expense to ensure your production never stops due to tool wear.
Yes. Beyond standard Stainless Steel and Aluminum, we have extensive experience stamping Beryllium Copper, Spring Steel, Titanium, and Nickel alloys. We adjust the die clearance and coating specifically for each material's properties.
Our press capacity (up to 400 Tons) allows us to handle material thicknesses ranging from 0.05mm (foil-thin) up to 6.0mm, depending on the part geometry and material hardness.
Absolutely. To save you time and cost, we can often integrate in-die tapping (threading), hardware insertion, or specialized coining directly into the stamping process, delivering a finished part ready for assembly.
