Custom CNC Mill-Turn Services
We provide advanced multi-tasking CNC mill-turn solutions for complex geometries. By combining turning and milling in a single setup, we deliver high-precision parts with tolerances as tight as ±0.005mm, specifically for the aerospace, medical, and automotive industries.
Ultra-Precision: Tolerances as tight as ±0.005 mm
Versatile Material Range: Over 50+ metals and plastics in stock
Cost-Effective Design: DFM (Design for Manufacturing) feedback included with every quote
Core CNC Mill-Turn Capabilities
We operate over 100 advanced multi-tasking CNC machining centers, integrating turning and milling to deliver high-complexity parts with maximum efficiency.
Standard Mill-Turn
Description: Ideal for cylindrical parts requiring basic secondary milling operations like flats, slots, and cross-holes. This process eliminates multiple setups, offering high efficiency and great value for money.
4-Axis Mill-Turn
Description: Equipped with live tooling and Y-axis capabilities, suitable for off-center machining and complex surface features on turned components. Perfect for high-precision industrial shafts and housings.
5-Axis Mill-Turn
Description: Our top-tier capability for the most challenging geometries. By combining full 5-axis milling with high-speed turning, we produce aerospace components, impellers, and medical implants in a single, high-precision setup.
CNC Mill-Turn Materials
We machine a comprehensive range of materials to meet your specific application requirements, from common alloys to exotic specialty materials.
Metals
- Aluminum
- Brass
- Copper
- Stainless Steel
- Steel Alloy
- Steel Mild Low Carbon
- Titanium
Plastics
|
|
Upload CAD drawings
Surface Finish on Milled Parts
Enhance the durability and aesthetics of your custom components with our professional CNC surface finishing services. Whether you need to eliminate machining marks or add a layer of industrial-grade protection, our finishes ensure your parts meet the highest functional and visual standards.
As Machined
Anodizing
Alodine
Black Oxidize
Heat Treatment
Powder Coating
Sand Blasting
Polishing
Brushed Finish
Tumbling
Electropolish
Electroplating
CNC Mill-Turn Design Guidelines
To ensure the best balance between manufacturing cost and high precision, we recommend following these design standards for your CNC-machined parts.
Maintaining adequate wall thickness is critical to prevent part deformation during machining.
Metals: Recommended minimum 0.8mm (0.030″).
Plastics: Recommended minimum 1.5mm (0.060″).
Optimization Tip: Thinner walls increase vibration and reduce machining accuracy.
CNC milling tools are round, meaning vertical internal corners will always have a radius.
Recommended Radius: At least 1/3 of the cavity depth.
Best Practice: Use a radius slightly larger than the standard tool size (e.g., if a 6mm tool is used, use a 3.2mm radius) to reduce tool stress.
Optimization Tip: Avoid sharp 90-degree internal corners as they require expensive EDM (Electrical Discharge Machining).
Deep pockets can lead to tool deflection and chip evacuation issues.
Limit: Depth should ideally be no more than 4x the cavity width.
Maximum: Up to 10x width if using specialized tooling (increases cost).
Deep pockets can lead to tool deflection and chip evacuation issues.
Limit: Depth should ideally be no more than 4x the cavity width.
Maximum: Up to 10x width if using specialized tooling (increases cost).
Our standard machining tolerance is ISO 2768-m (Medium).
Standard: ± 0.125mm (± 0.005″).
Precision: Up to ± 0.005mm (± 0.0002″) upon request for critical features.
Advice: Only specify tight tolerances for critical mating surfaces to minimize unnecessary costs.
Our advanced CNC centers can handle parts up to:
CNC Milling: 1500mm x 800mm x 500mm (59″ x 31″ x 19″)
CNC Turning: 500mm (Diameter) x 1000mm (Length)
Why Choose Our CNC Milling?
Fast Quotes & DFM Feedback: Get professional quotes within 24 hours, including free Design for Manufacturing (DFM) analysis to optimize your mill-turn tool paths and reduce costs.
On-Time Delivery Guarantee: Our integrated multi-tasking machines reduce secondary handling, streamlining production to ensure your parts are shipped exactly when promised.
Material Certification: Every order comes with full material and inspection reports, ensuring complete traceability and peace of mind for mission-critical parts.
One-Stop Finished Parts: Save time by letting us handle everything from complex CNC mill-turn machining to professional surface treatments under one roof.
Flexible Production (Low MOQ): Whether you need a single complex prototype or 10,000+ units, we provide the same level of mill-turn precision and care.

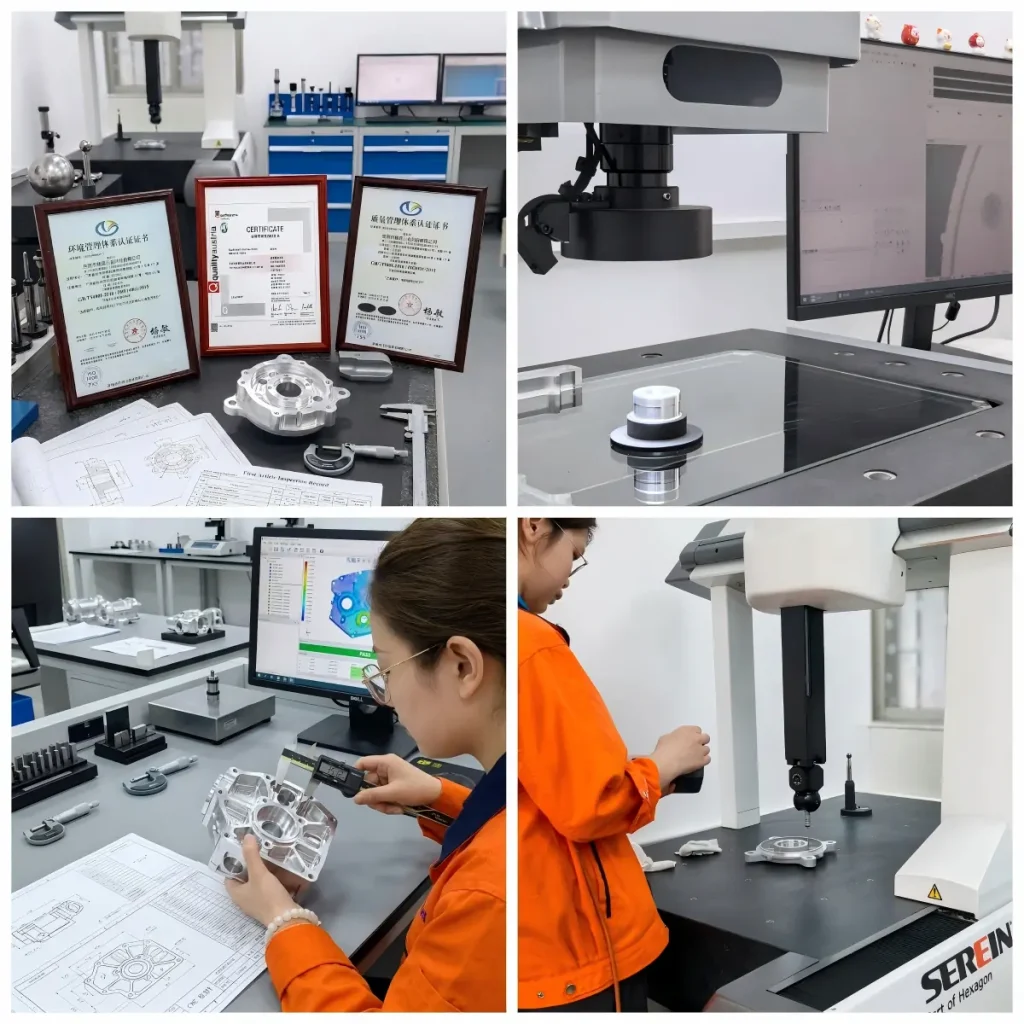

Quality Assurance for Precision Machining
ISO 9001:2015 Certified
Our facility follows a strict quality management system to ensure consistent manufacturing standards and continuous process improvement.
100% Dimensional Inspection
Utilizing advanced CMM (Coordinate Measuring Machine) and precision optical instruments to verify every critical dimension against your specifications.
Certified Material Testing
We provide full material certification and test reports (MTR) for every batch, ensuring the integrity and compliance of the raw materials used.
First Article Inspection (FAI)
A rigorous validation process for the initial production parts to ensure the setup and programming are perfect before proceeding to full-scale manufacturing.

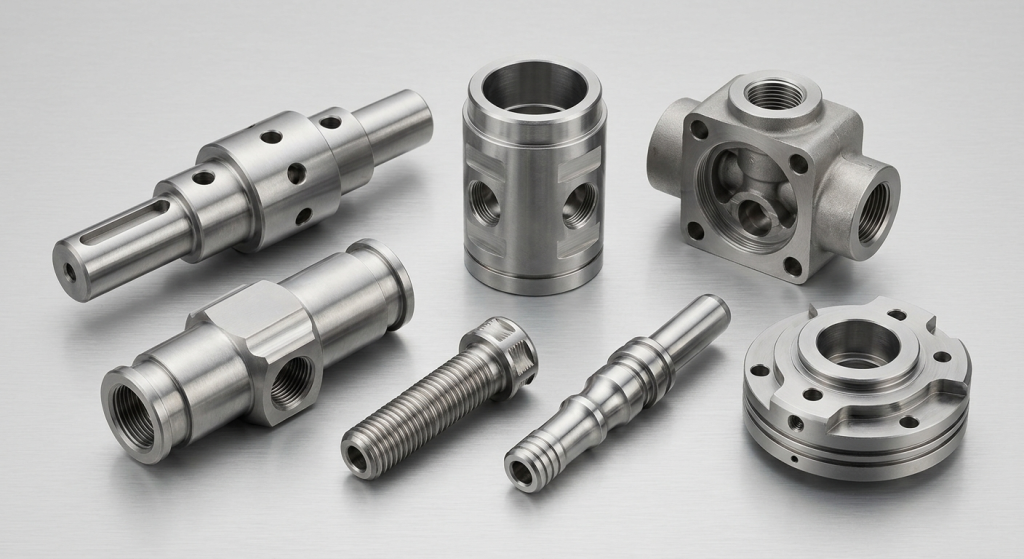

Precision CNC Mill-Turn Parts & Components
We specialize in high-performance CNC mill-turn components. Our expertise ensures complex parts are produced with superior concentricity and precision in a single setup.
Core Component Categories:
Precision Shafts & Axles: Integrated turning and milling for shafts with perfectly aligned keyways and cross-holes.
Valve Bodies & Manifolds: Complex internal flow paths for leak-proof hydraulic and pneumatic systems.
Aerospace Fasteners: High-strength connectors with superior thread accuracy and tight tolerances.
Medical Instruments: Ultra-precise turned parts with intricate milled features for surgical applications.
Cylindrical Housings: Precision shells for sensors and electronics with integrated connector ports.
FAQs
A: Traditional CNC turning centers primarily rotate the workpiece against a stationary tool. CNC Mill-Turn integrates both milling (rotating tools) and turning (rotating workpiece) capabilities into a single machine. Equipped with live tooling and multiple axes (such as Y-axis and B-axis), it can perform complex operations like lateral drilling, slotting, and contouring without moving the part to a separate milling machine.
A: The primary benefit is "Done-in-One" processing. By completing complex parts in a single setup, we significantly:
Improve Accuracy: Eliminate alignment errors caused by manual re-clamping between machines.
Reduce Lead Times: Streamline production by removing internal logistics between departments.
Lower Costs: Reduce labor and fixture requirements, providing a more competitive unit price for complex geometries.
A: Our advanced multi-axis Mill-Turn centers are engineered for high-precision components. We consistently achieve tight tolerances down to ±0.005 mm (0.0002") depending on the material and geometry. This makes our process ideal for critical industries such as aerospace, medical devices, and high-end automotive engineering.
A: We process a wide range of industrial materials, including:
Metals: Aluminum (6061, 7075), Stainless Steel (304, 316, 17-4 PH), Titanium (Grade 5), Brass, and Copper.
High-Temp Alloys: Inconel and Cobalt-Chrome for demanding environments.
Plastics: PEEK, POM (Delrin), and Teflon for specialized medical or chemical applications.
A: While Mill-Turn setup times can be more complex than simple lathes, the total cost of ownership is often lower for small-to-medium batches of complex parts. Since we bypass the need for multiple custom fixtures and separate milling setups, the "total process time" is shorter, making it highly efficient for prototype-to-production transitions.
