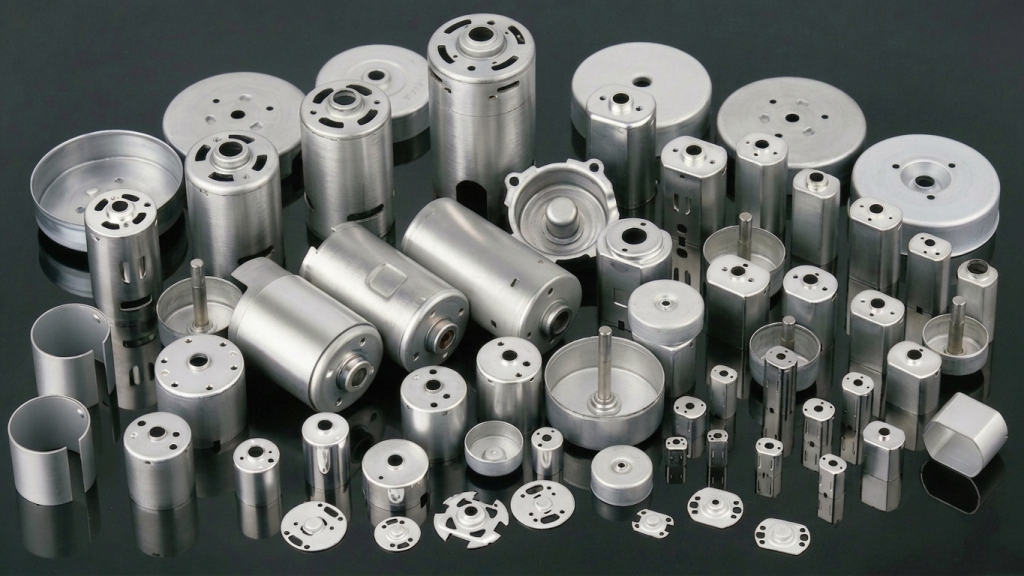

Custom Galvanized Steel Stamping for Micro Motor Housings
IATF 16949 Certified Partner for Global Tech Leaders including Dyson, DJI, BYD, and Philips. Delivering expert galvanized steel stamping solutions, we leverage 20+ years of expertise in deep drawing SECC and SGCC materials to produce 250 million sets of cost-effective, rust-resistant motor shells annually.
Our Galvanized Steel Stamping Capabilities
Precision Manufacturing
Dimensional Tolerance: Up to ±0.01mm for critical motor housings and concentricity.
Material Thickness: 0.2mm to 4.0mm (Optimized for SECC/SGCC deep drawing).
Press Capacity: 95+ heavy-duty automatic presses ranging from 25T to 300T.
Flatness Control: Within 0.03mm for precision motor end covers and plates.
Production Excellence
Volume Capacity: From rapid prototyping to mass production of 100 million+ units.

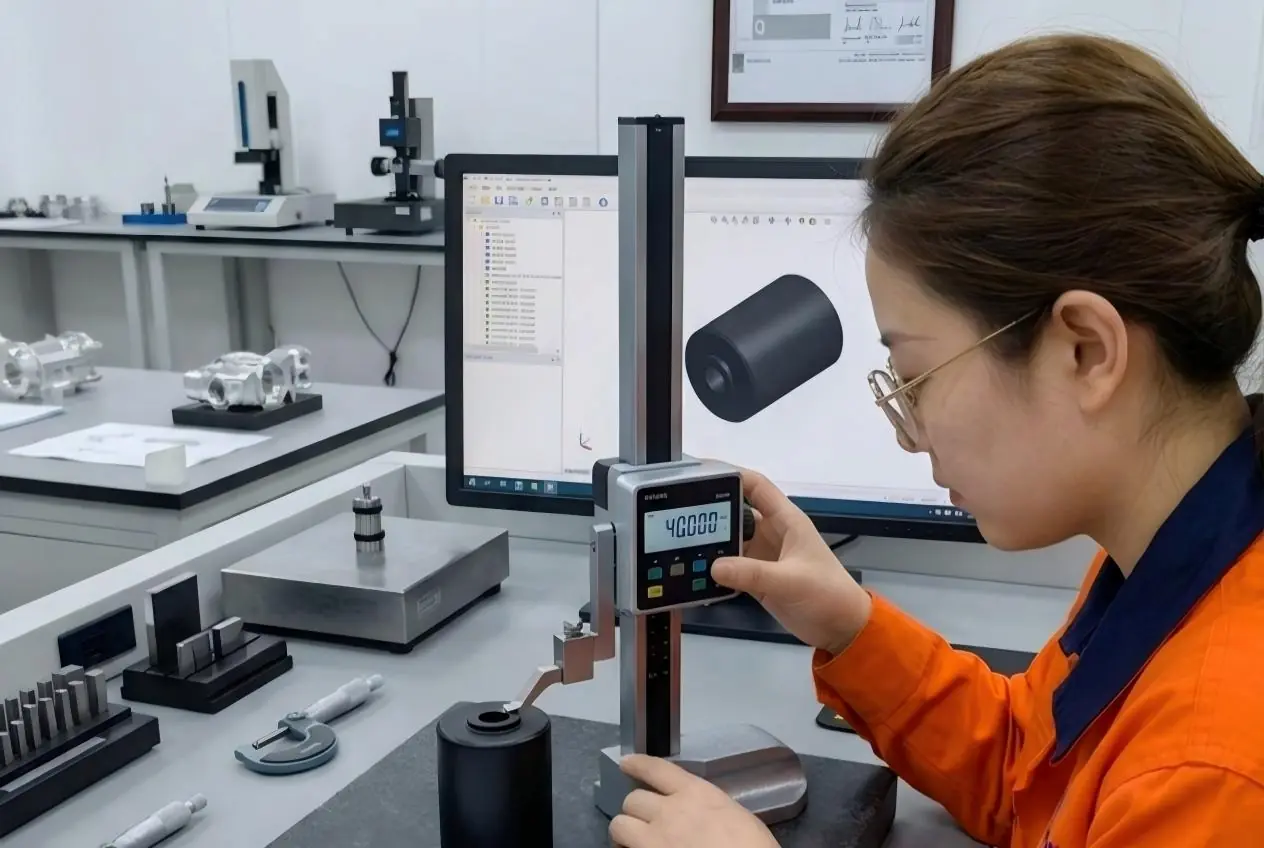

Quality Assurance: IATF 16949 certified process with 100% CMM and zinc-coating checks.
Tooling Life: In-house progressive and deep-drawing die design for up to 10M strokes.
Integrated Supply Chain: One-stop service from stamping to CNC and anti-rust treatment.

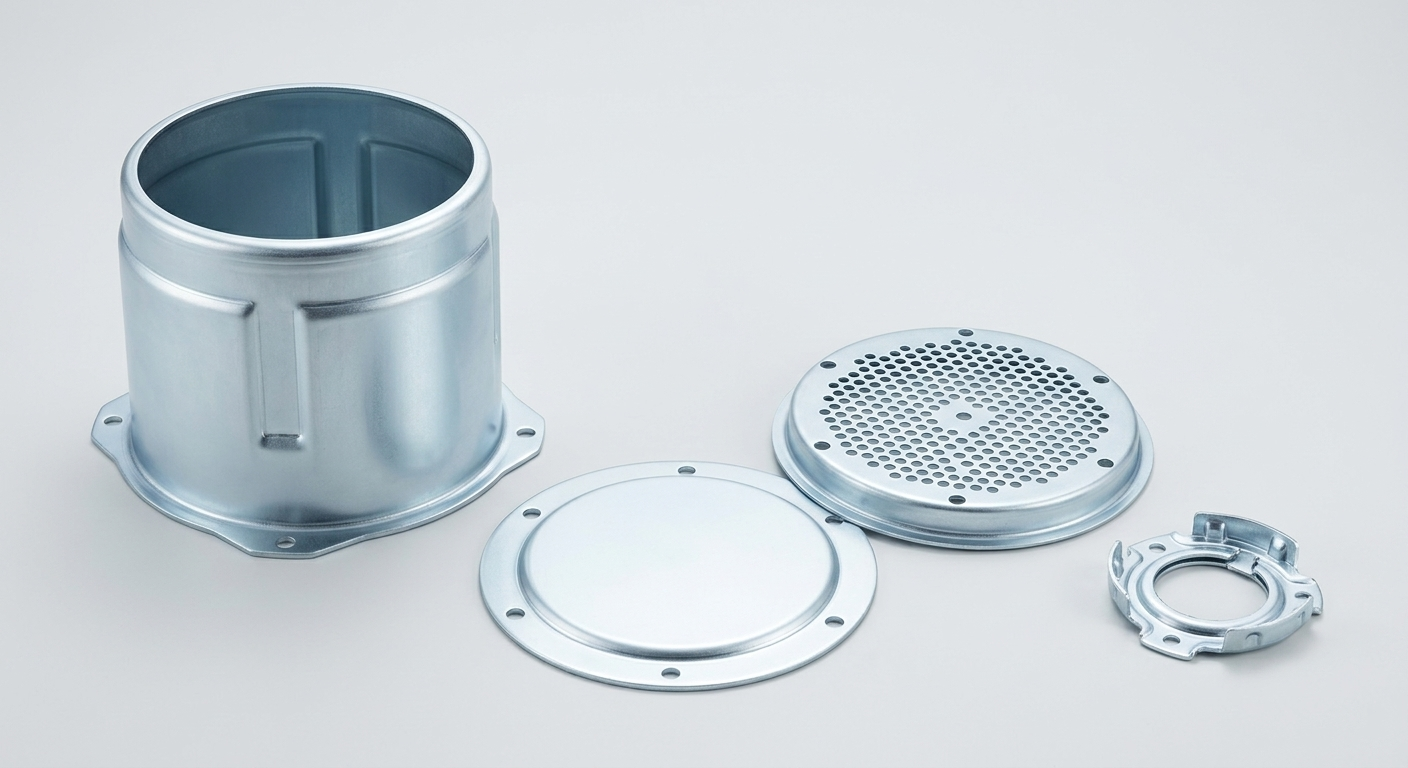

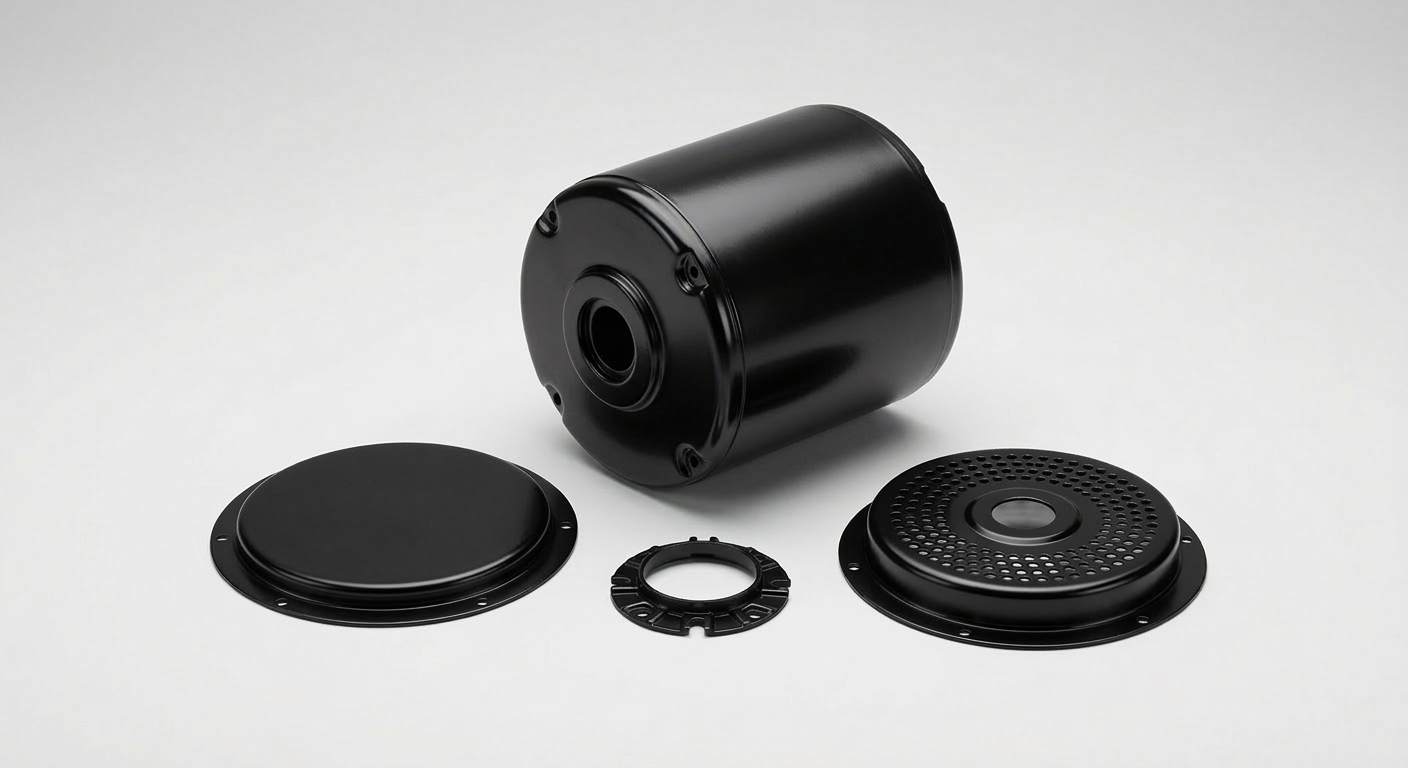

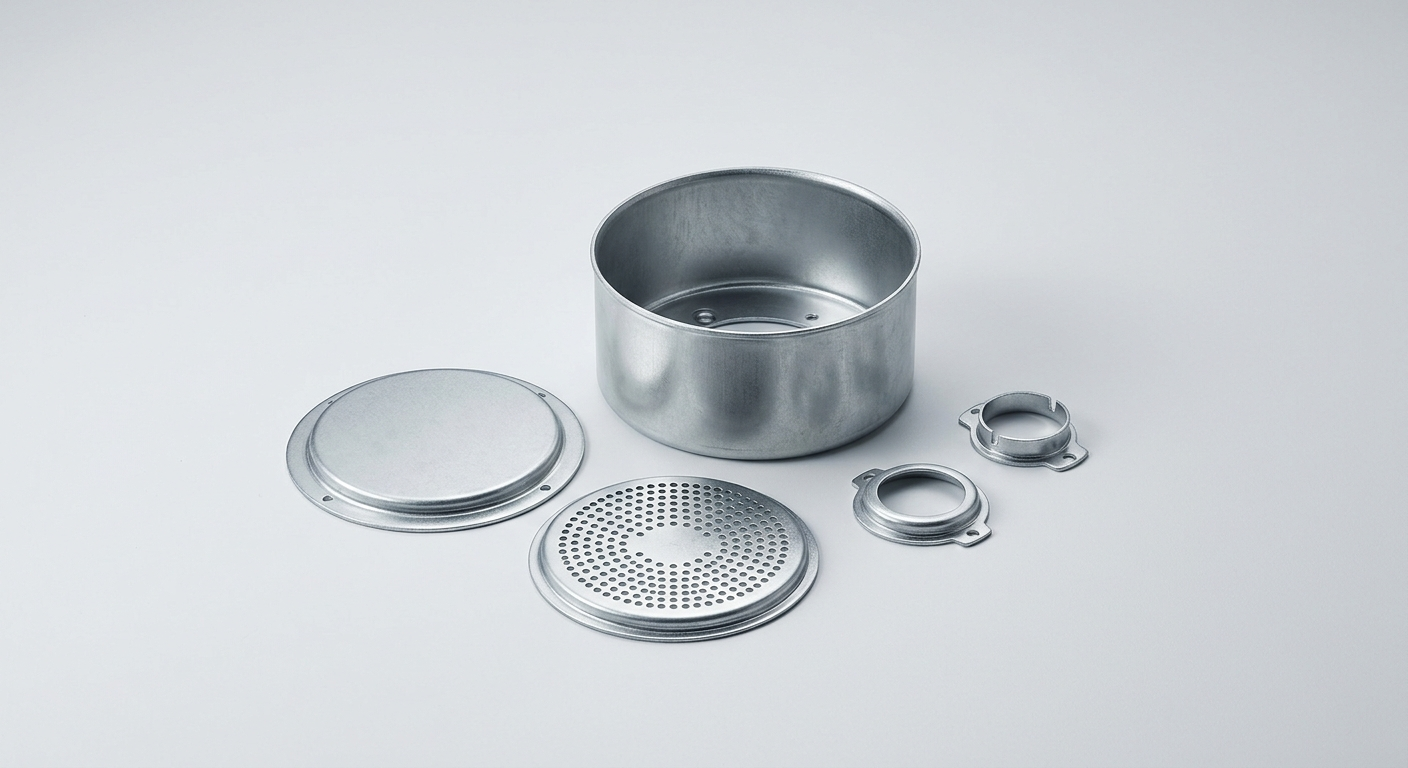

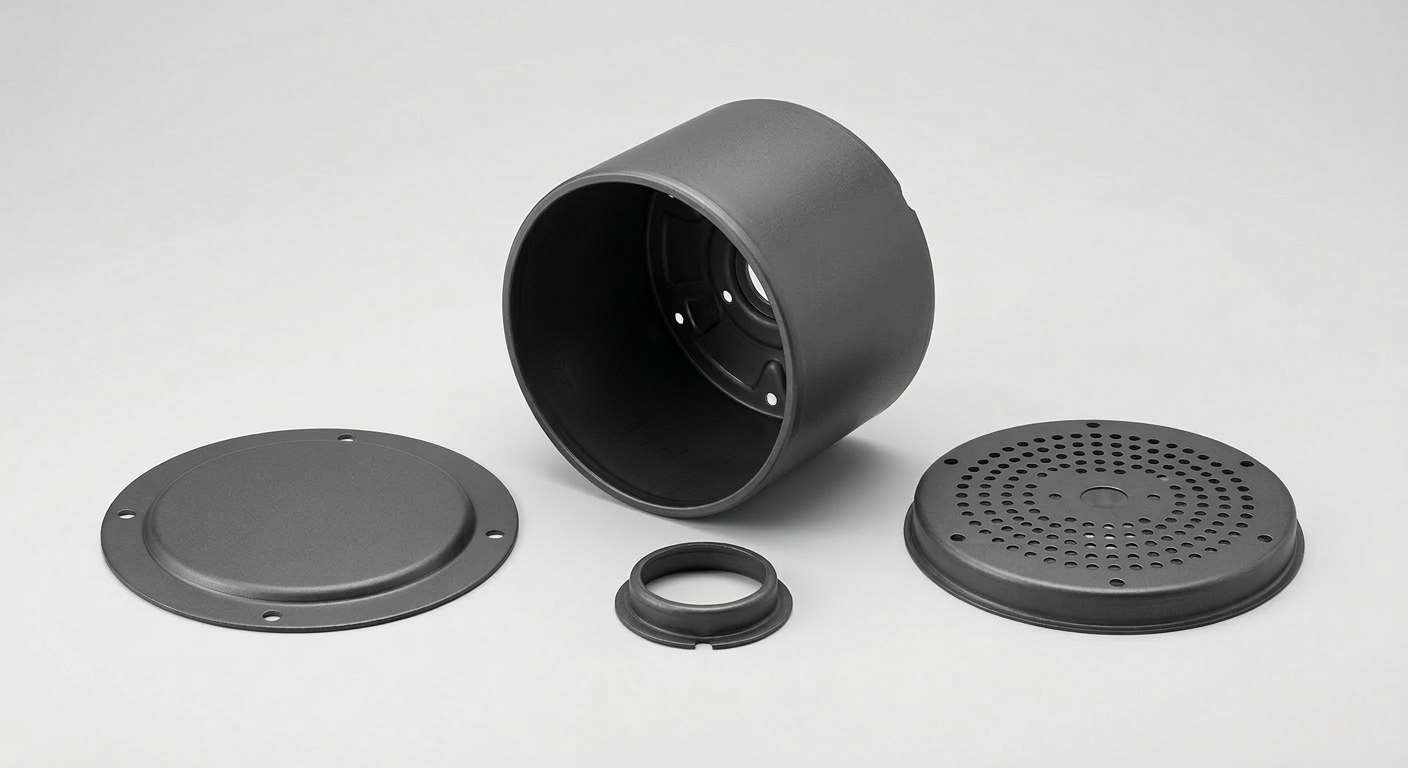

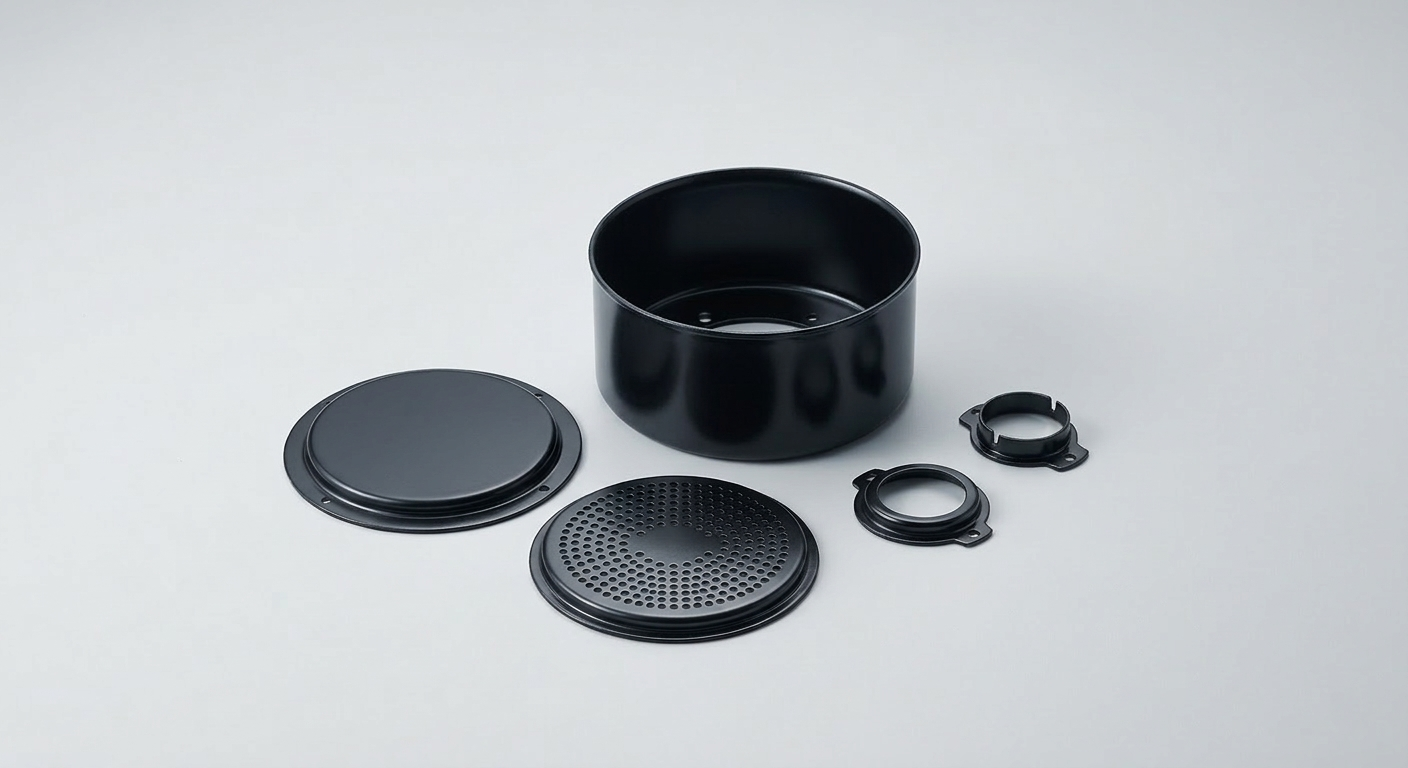

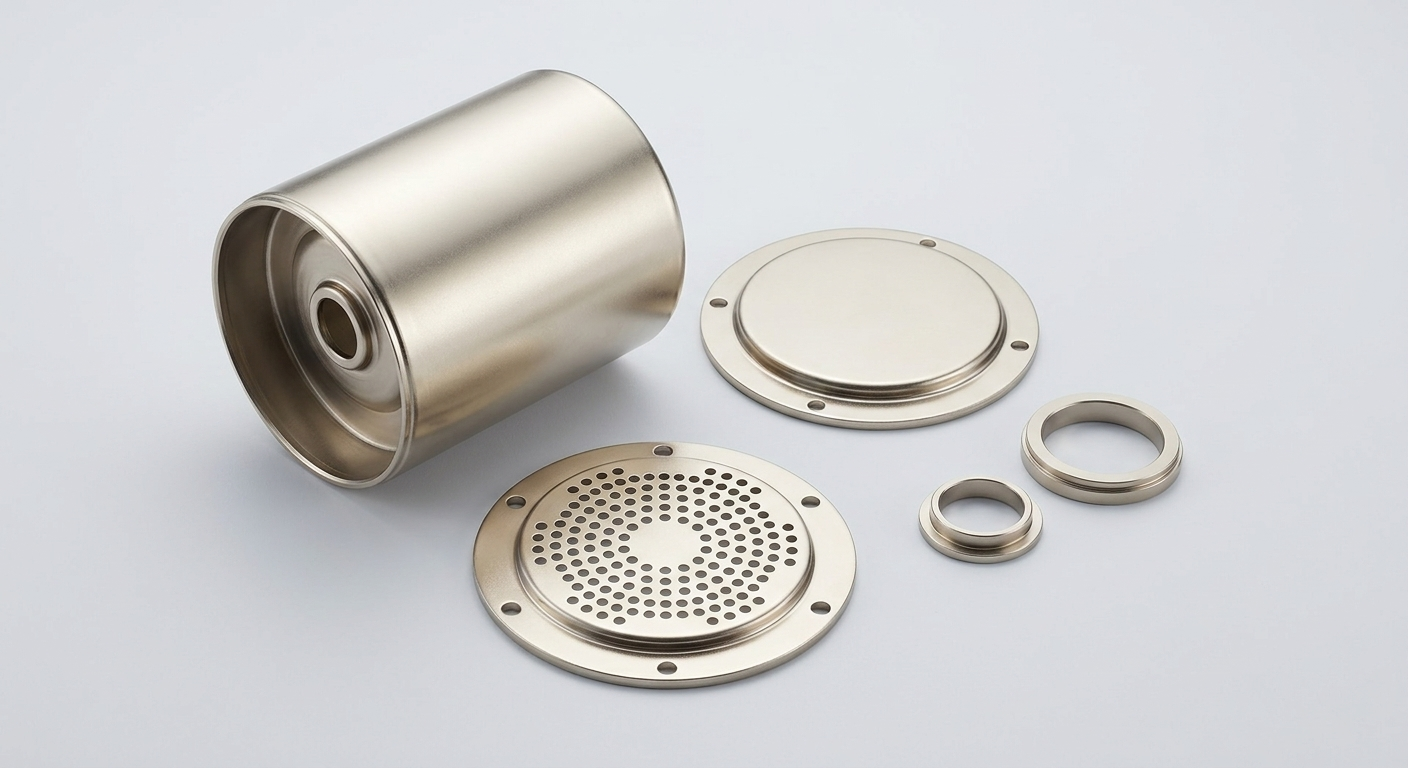

Advanced Surface Finishing Solutions for Steel Motor Housings
Optimized Steel Materials for Precision Motor Stamping
Galvanized and cold-rolled steel are the most cost-effective and reliable choices for micro motor components, offering excellent formability, magnetic shielding, and structural rigidity. At Yongyuan, we optimize your material selection. By choosing the precise grade—from highly formable SPCE for deep-drawn motor cans to corrosion-resistant SECC for precision end covers—we ensure your housings meet the exact mechanical demands of your application. Every batch is strictly verified for zinc-coating thickness and consistency under our IATF 16949 quality system.

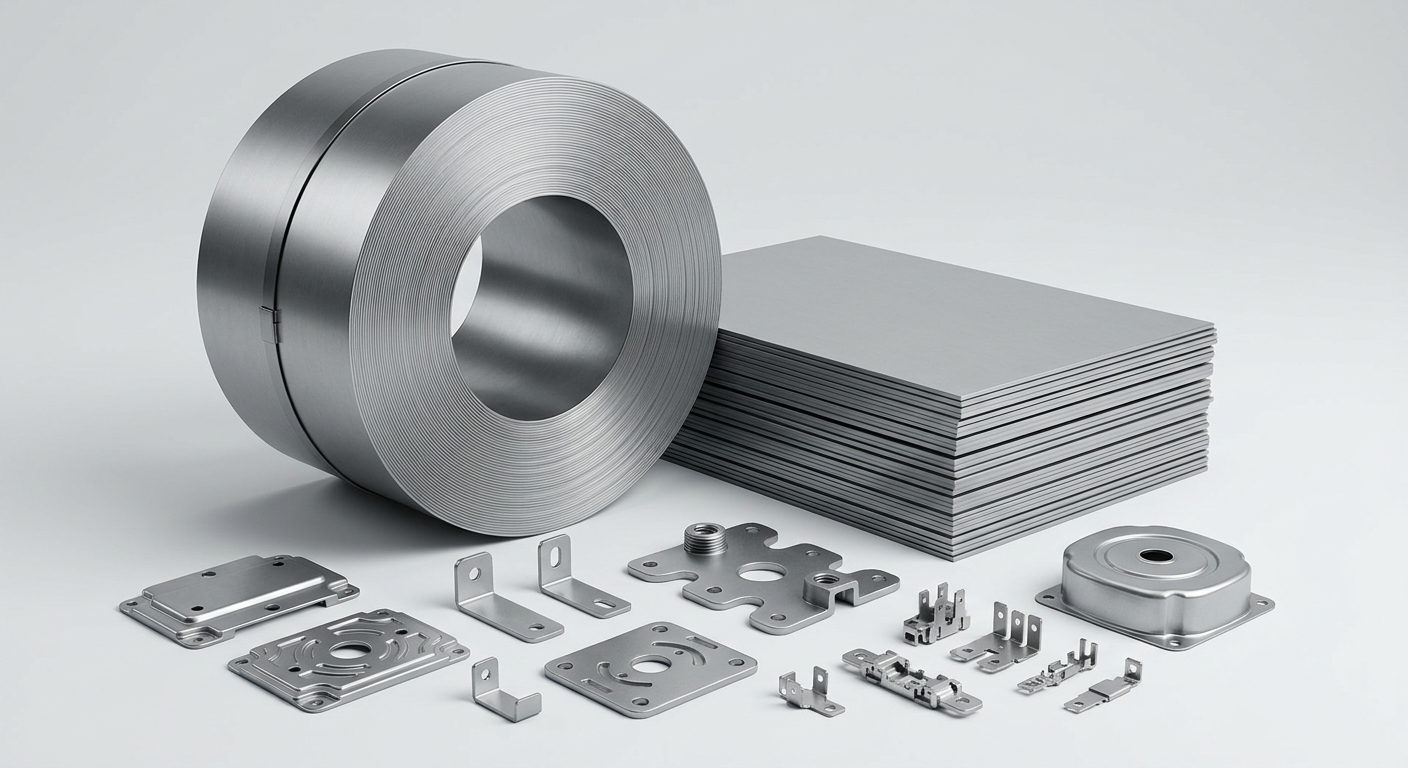

SPCC
SPCC is a widely used commercial cold-rolled steel for general stamping parts, cover plates, brackets, and shallow-drawn housings. It offers stable formability, smooth surface quality, and cost-effective performance for high-volume motor hardware applications.

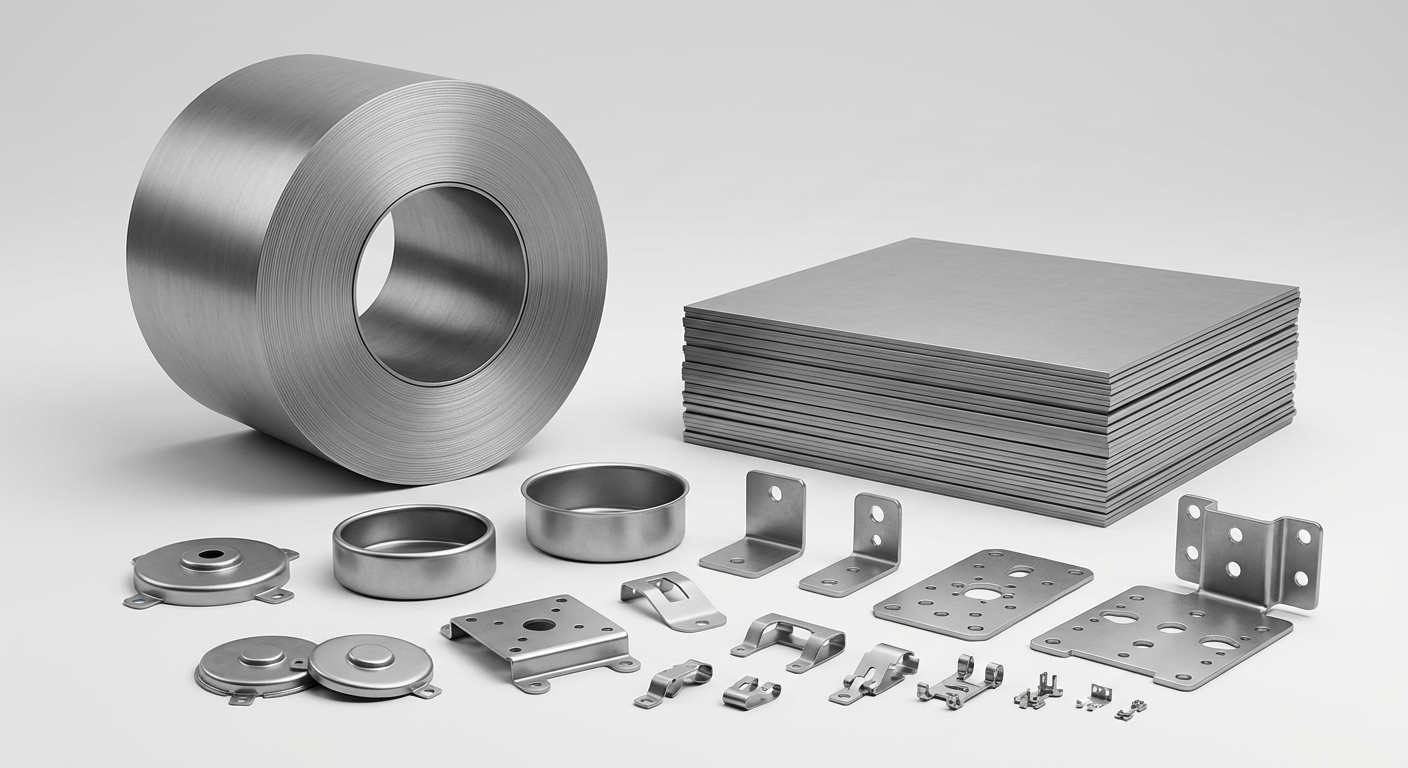

SPCD
SPCD is a drawing quality cold-rolled steel designed for parts that require better ductility than standard commercial grades. It is suitable for stamped and moderately drawn motor housings, end covers, and structural components that need stable forming performance.

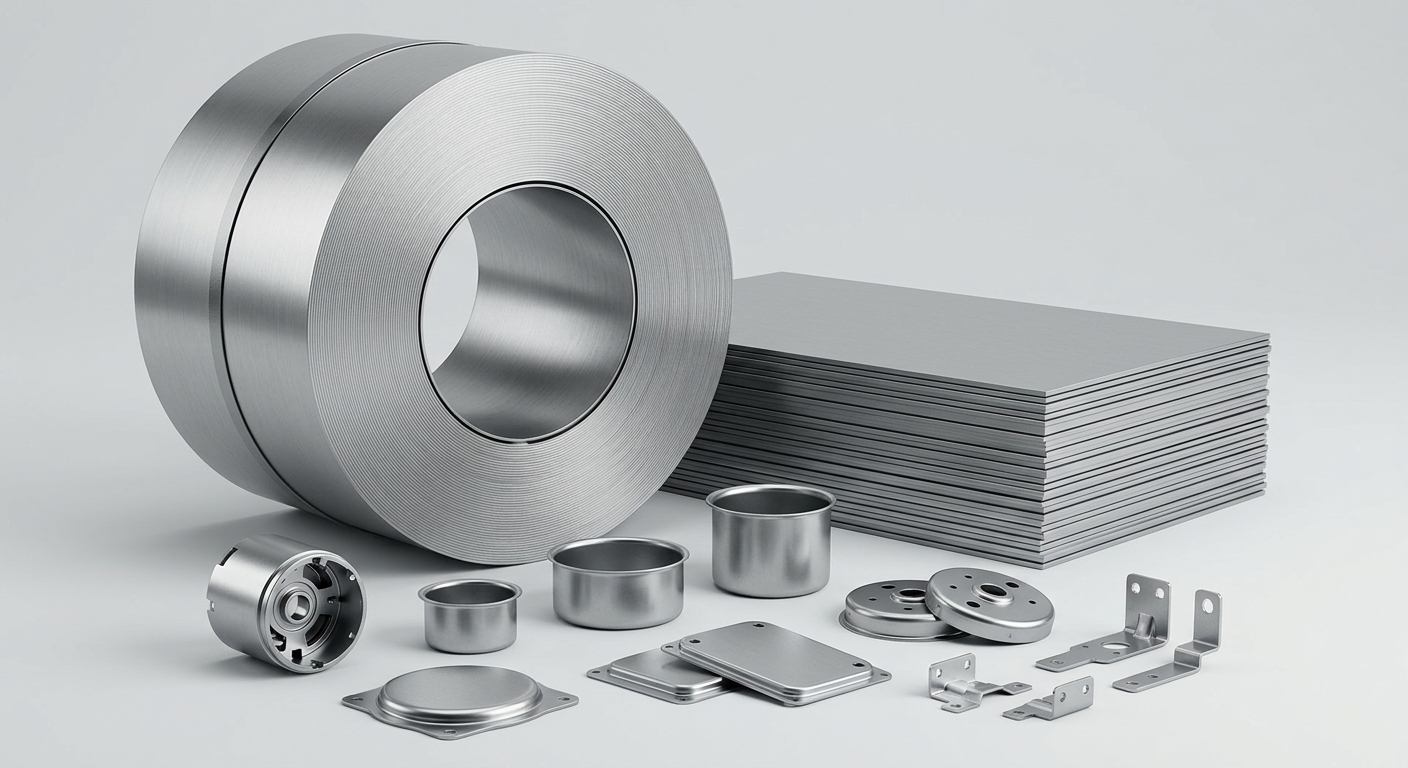

SPCE
SPCE is a deep drawing quality cold-rolled steel developed for parts with higher forming demands. It is ideal for deep-drawn motor housings, cylindrical shells, and precision cover components that require excellent ductility and stable shaping performance.

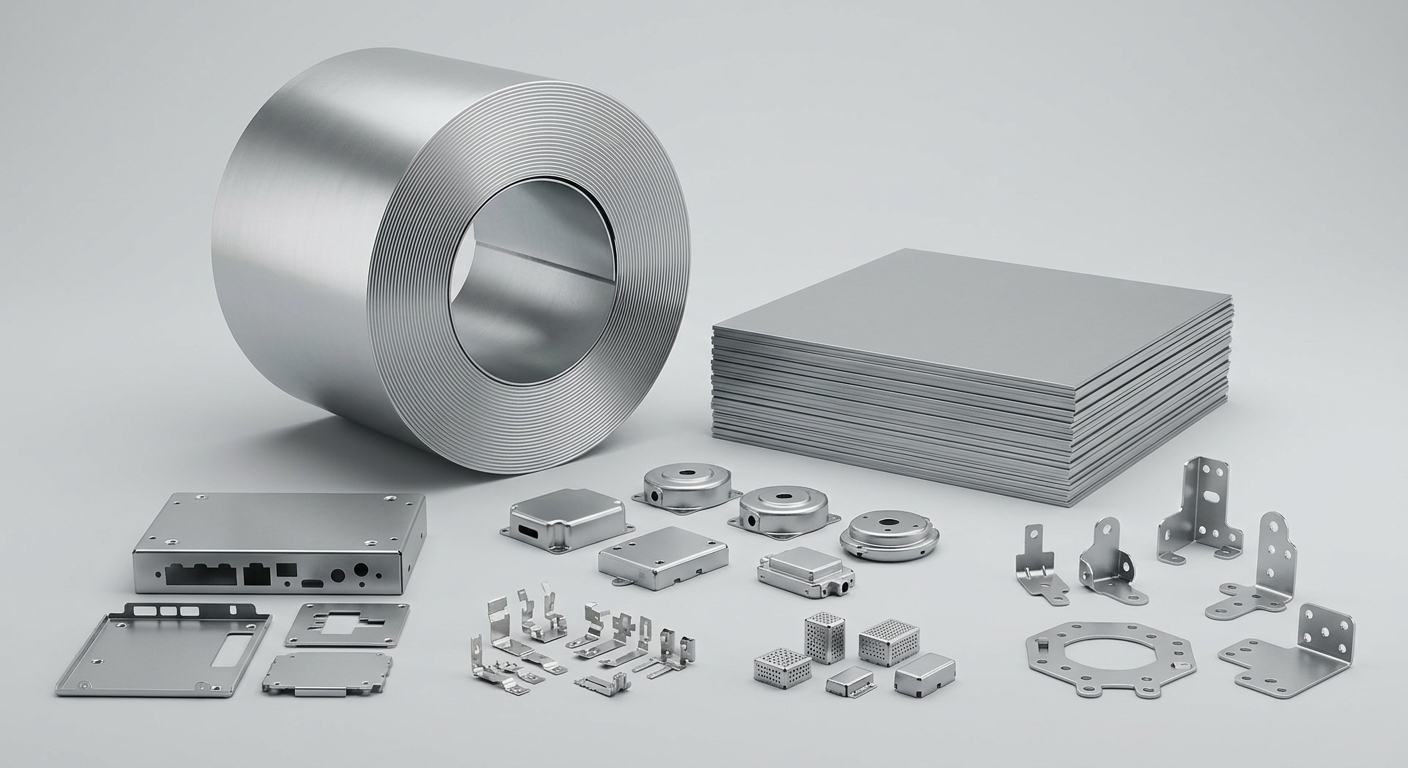

SECC
SECC is an electro-galvanized steel with a smooth surface, good corrosion resistance, and reliable stamping performance. It is widely used for precision metal housings, cover plates, terminals, and electronic hardware parts that require both formability and a clean appearance.

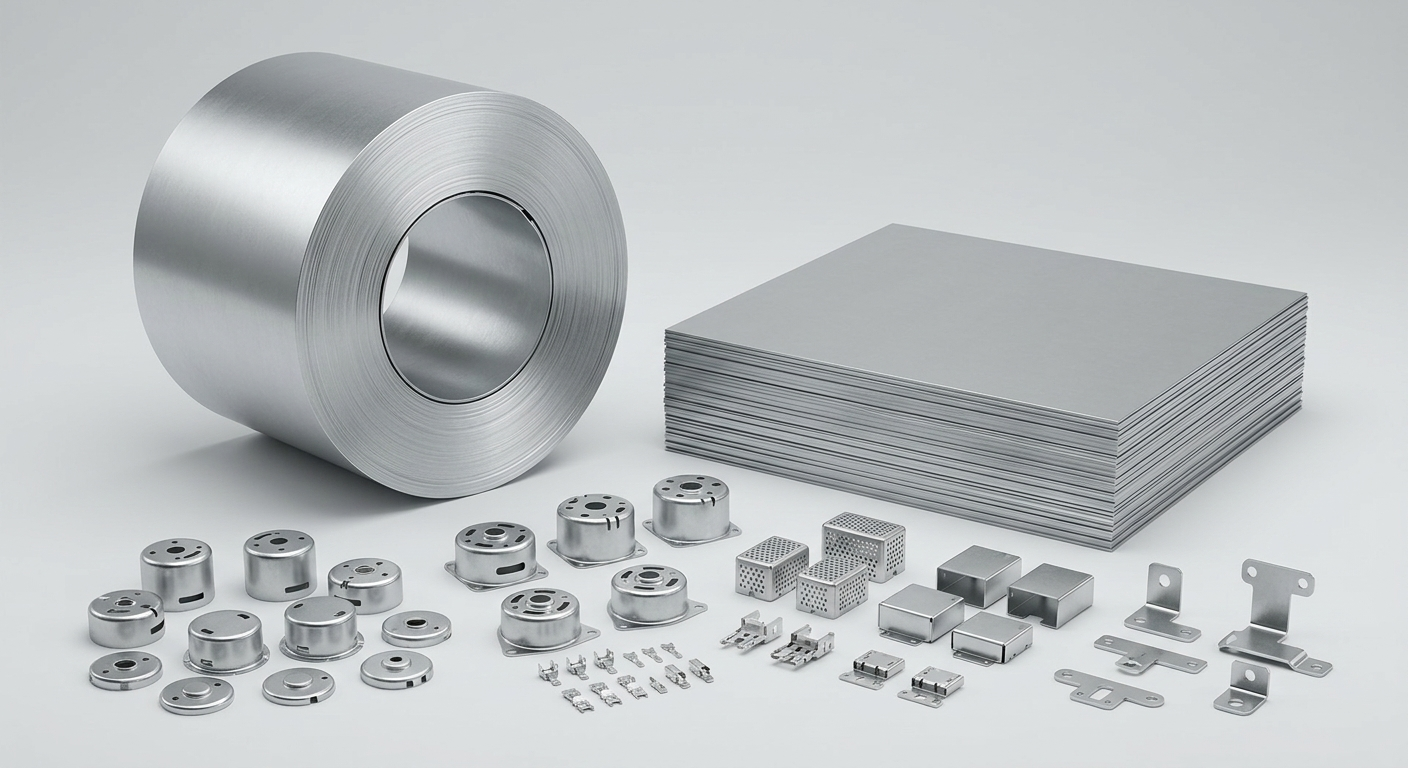

Drawing Quality Electro-Galvanized Steel
Drawing Quality Electro-Galvanized Steel combines the smooth surface and corrosion resistance of electro-galvanizing with improved formability for stamped and drawn parts. It is well suited for precision motor casings, end covers, terminals, and metal housings that require both appearance quality and reliable shaping performance.

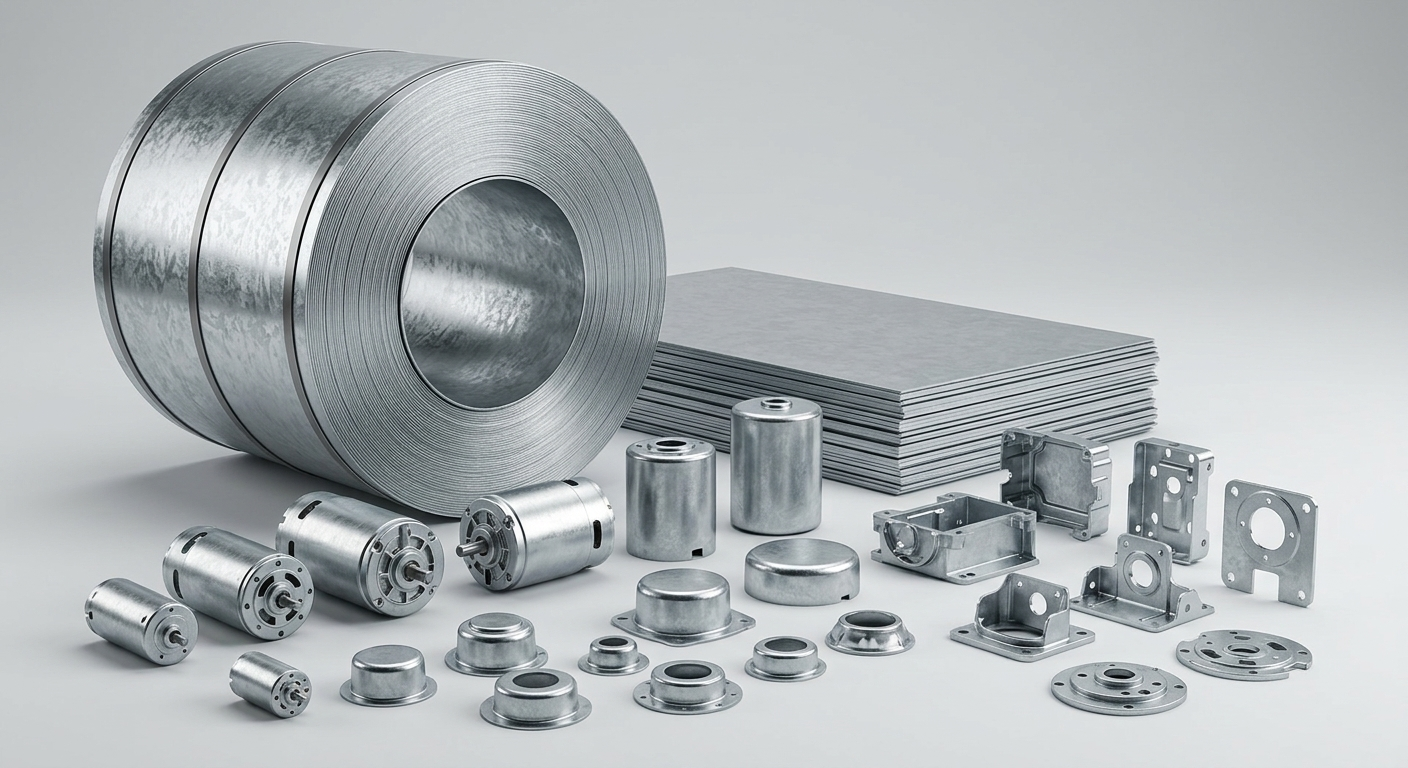

Deep Drawing Hot-Dip Galvanized Steel
Deep Drawing Hot-Dip Galvanized Steel is designed for stamped parts that require enhanced corrosion resistance and deeper forming capability. It is suitable for motor housings, protective covers, and metal shells that need stable deep drawing performance in demanding industrial applications.

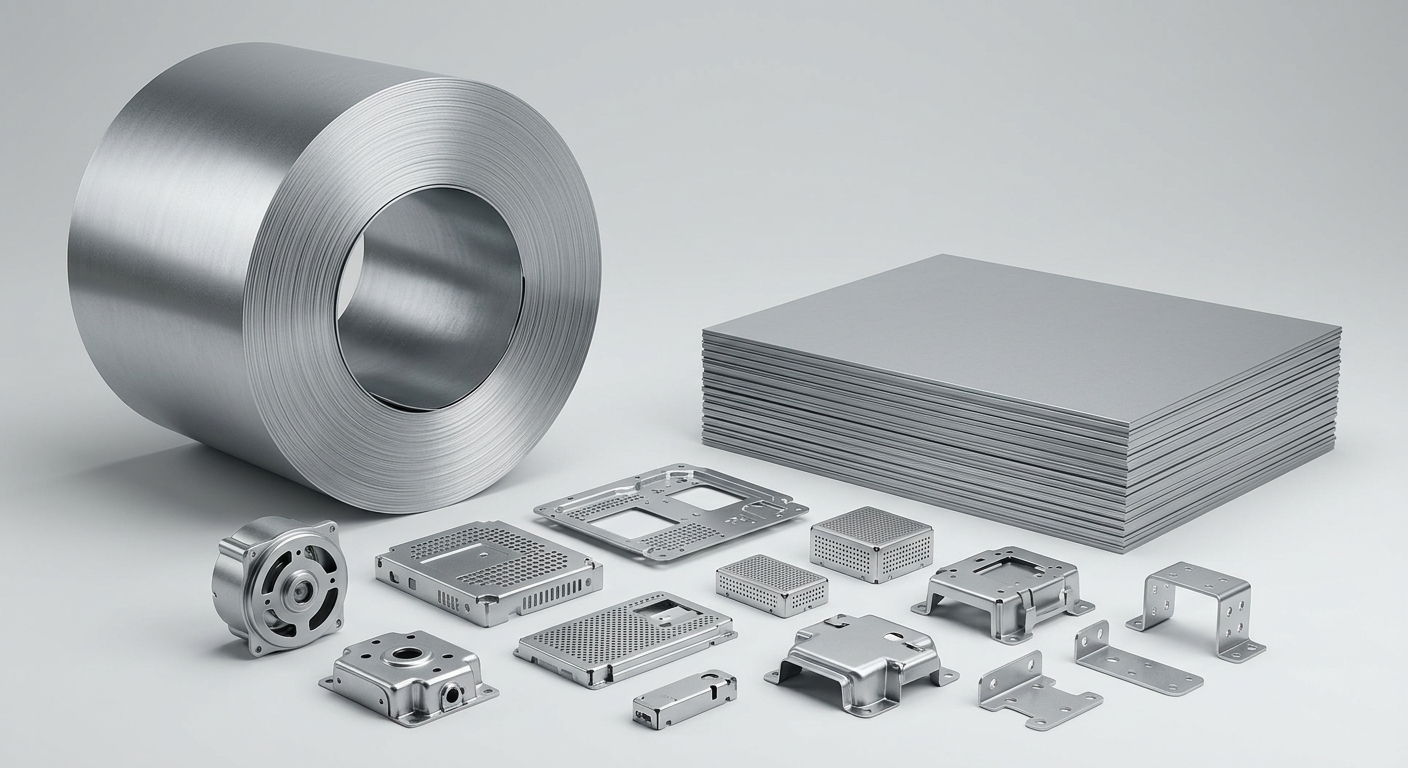

Anti-Fingerprint Galvanized Steel
Anti-Fingerprint Galvanized Steel features a protective surface treatment that helps reduce visible fingerprints, light stains, and handling marks. It is suitable for stamped cover plates, visible housings, and precision metal parts that require both corrosion resistance and a cleaner surface appearance.

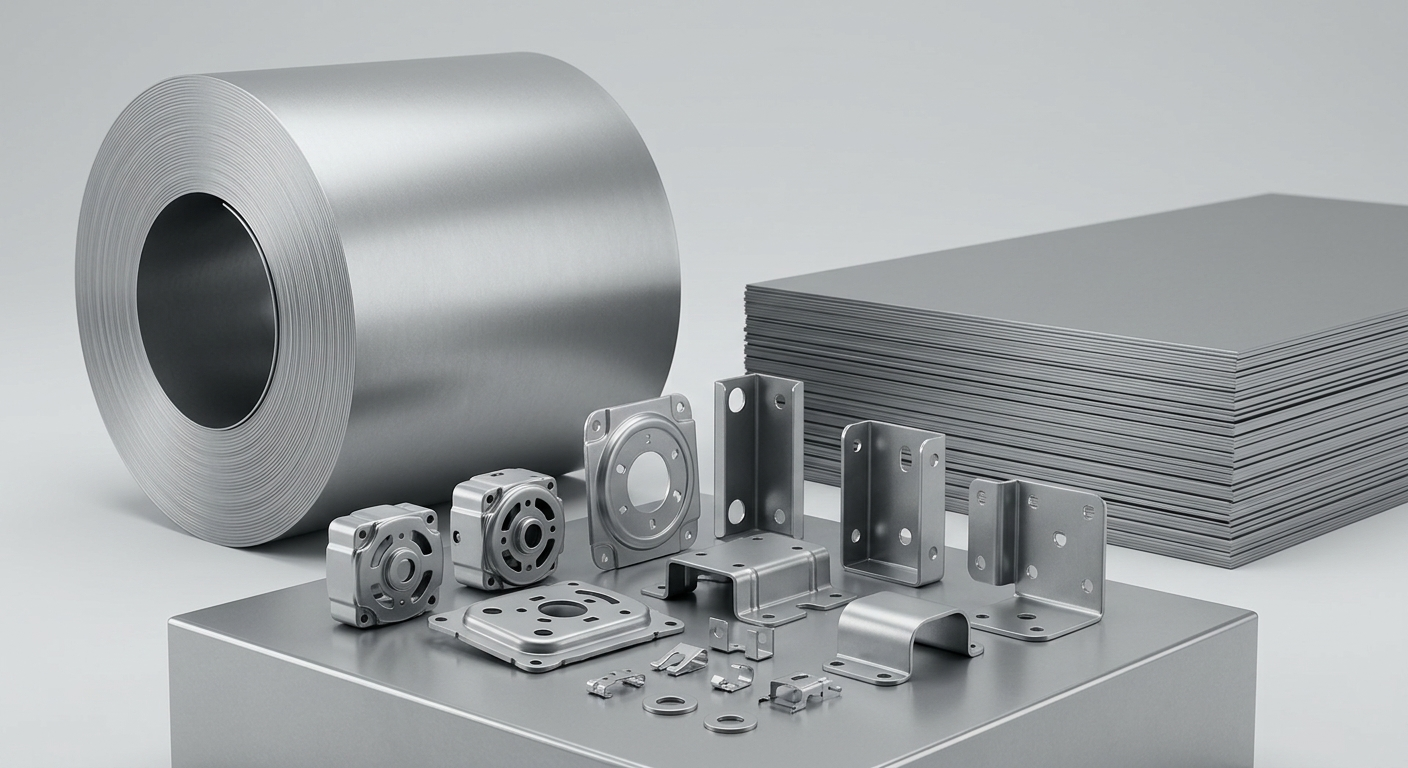

Zinc-Aluminum-Magnesium Coated Steel
Zinc-Aluminum-Magnesium Coated Steel offers enhanced corrosion resistance compared with conventional galvanized steel, especially for edges and challenging service environments. It is suitable for stamped housings, cover plates, structural parts, and metal shells that require long-term durability and reliable forming performance.
What is galvanized steel stamping?
Galvanized steel stamping (using SECC, SGCC, or SPCC) is a highly cost-effective process for mass-producing motor components. At Yongyuan, we use high-tonnage presses and Deep Drawing techniques to manufacture precision motor housings and shields with tight ±0.01mm tolerances.
Advantages of galvanized steel stamping
Cost-Effective: Significantly more affordable than stainless steel, making it the industry standard for high-volume micro motors.
Built-In Rust Resistance: The uniform zinc layer (SECC/SGCC) acts as a sacrificial shield against corrosion.
Magnetic Shielding: Natural steel permeability prevents electromagnetic interference (EMI) in precision motors.
High Rigidity: Delivers exceptional structural durability for heavy-duty automotive brackets and industrial applications.
Disadvantages of galvanized steel stamping (And Our Solutions)
Zinc Layer Flaking: Deep drawing can cause zinc to peel. Our Solution: We use advanced die clearance controls and extreme-pressure lubricants to ensure the zinc stretches flawlessly.
Edge Rust on Sheared Cuts: Stamping exposes bare iron edges. Our Solution: We apply integrated secondary treatments like e-coating (black finish) or plating to seal all cuts perfectly.
Tool Wear: Hard steel accelerates die wear. Our Solution: We build heavy-duty progressive dies using premium tungsten carbide, ensuring precision for up to 10 million strokes.
Your Strategic Partner for Micro Motor Steel Hardware
Yongyuan specializes in high-precision galvanized and cold-rolled steel components for the micro motor ecosystem. We combine advanced deep drawing and stamping to deliver cost-effective, high-strength solutions. By leveraging steel’s unique properties, we ensure optimal magnetic shielding and structural integrity for global tech leaders.
The Three Pillars
A: Extensive Industry Applications
Automotive Motors: Supplying critical steel parts for power seat motors, window regulators, and wiper systems.
Smart Home & Tools: High-volume manufacturing for high-speed hair dryer motor shells, vacuums, and power tools.
Advanced Technology: Precision magnetic shields and brackets for drone gimbals and security cameras.
B: Mastery of Complex Stamping
Deep Drawing: Specialized in complex SECC/SPCC motor shells with perfect concentricity and zero zinc flaking.
Automation: Utilizing heavy-duty Progressive Dies to achieve stable, high-speed production for massive global orders.
Full Component Spectrum: Manufacturing everything from deep-drawn motor cans to precision end covers and heavy brackets.
C: Engineering-Led Excellence
Optimized Materials: Mastery in processing SECC, SGCC, and SPCC grades tailored for exact motor performance.
Precision Control: Expert management of complex bending and forming to overcome steel springback and tool wear.
Efficiency & Quality: Strict IATF 16949 quality management ensuring zero-defect goals for every batch.

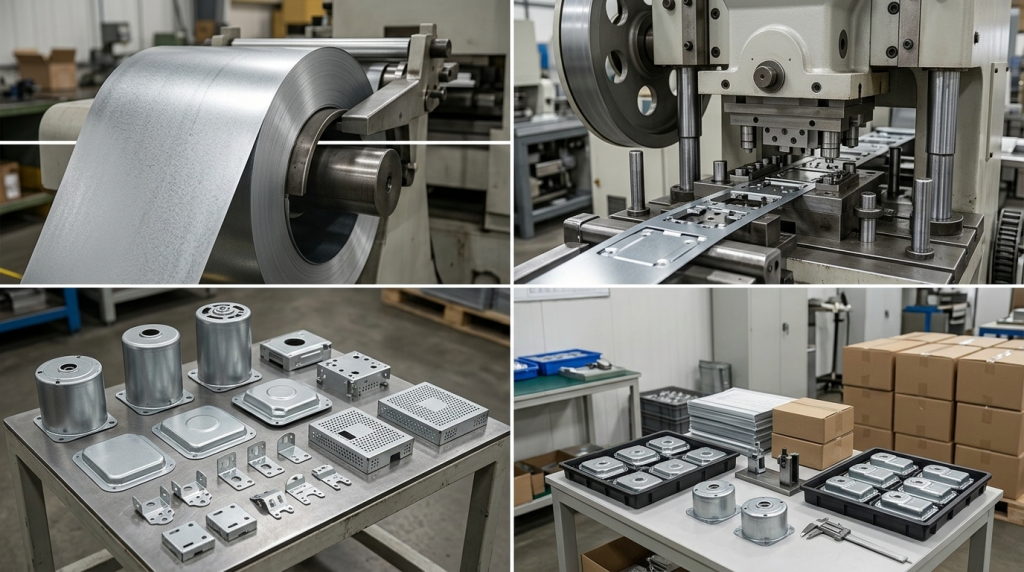

Precision Steel Stamping Workflow
Our engineering-led workflow is optimized for the high-speed, cost-effective production of precision SECC and SPCC motor components.
01. DFM Review & Tooling Design: Rigorous DFM audits for deep-drawn shells, designing heavy-duty progressive dies optimized to prevent zinc flaking.
02. Precision Blanking & Piercing: Utilizing high-tonnage presses for precise cutting, ensuring burr-free edges on high-strength steel materials.
03. Deep Drawing & Forming: Advanced forming techniques to achieve perfect concentricity and ±0.01mm tolerances for complex motor housings.
04. Anti-Rust Treatment & Cleaning: Dedicated secondary finishing (like e-coating) and ultrasonic cleaning to ensure 100% rust-free, clean components.
Why Leading Brands Partner with Yongyuan
Unrivaled Scalability: Powered by 95+ heavy-duty presses, we deliver 250 million sets annually, ensuring stable supply for global appliance and automotive giants.
Automotive & Aero Precision: Specializing in high-strength SECC/SPCC solutions for Power Seat Motors, Drones, and Smart Home devices where durability and magnetic shielding are critical.
Ultra-clean Finishing: Integrated IATF 16949 supply chain offering e-coating, plating, and ultrasonic cleaning to ensure 100% corrosion resistance for all steel components.
Precision Engineering (±0.01mm): Reliable quality guaranteed by rigorous DFM audits and IATF 16949 systems, meeting the strict tolerances of complex motor assemblies.
Technical Excellence: Overcoming Steel Challenges in Micro Motor Stamping
Steel precision demands expertise. We solve the unique complexities of forming high-strength motor components:
01. Zinc Flaking Control : Deep drawing can cause SECC zinc layers to peel. We use optimized die clearances and specialized extreme-pressure lubricants to ensure flawless stretching without flaking.
02. Tool Wear & Galling : High-strength steel accelerates die wear. We utilize premium tungsten carbide progressive dies to maintain ±0.01mm precision over massive 10-million-stroke production runs.
03. Edge Rust Prevention : Stamping exposes bare iron edges prone to rust. We implement rigorous secondary treatments (like e-coating and passivation) to completely seal all cuts and prevent early corrosion.
Steel Stamping Surface Treatment Standards
We manage the complete lifecycle of your steel motor components through IATF 16949-audited partners. From e-coating to nickel plating, every batch must pass strict quality gates:
Salt Spray Testing (Up to 480H): Validating extreme rust resistance.
Coating Thickness: Ensuring uniform internal/external protection.
Adhesion Tests: Guaranteeing zero zinc flaking.
Our Guarantee: 100% rust-free, zero-defect delivery.

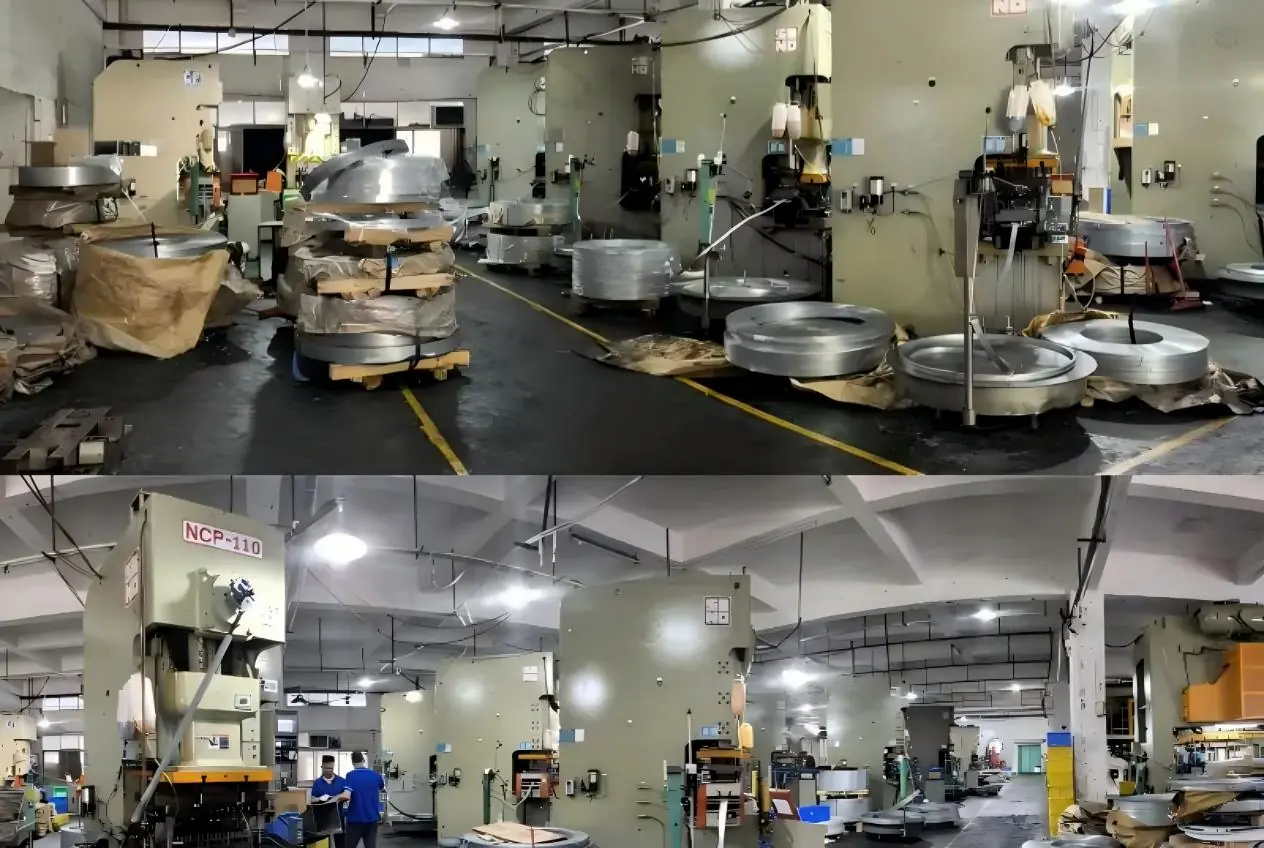

IATF 16949 Certified Factory with 250M Annual Capacity
Automotive-Grade Quality (IATF 16949)
Automotive-Grade Quality: Our IATF 16949 certification ensures every part meets the rigorous standards of the automotive and medical industries.
Scalable Capacity: 250M Sets/Year
Scalability: From rapid prototyping to annual orders of 100 million+ units, our 230-person team and 90+ CNC machines ensure on-time delivery.

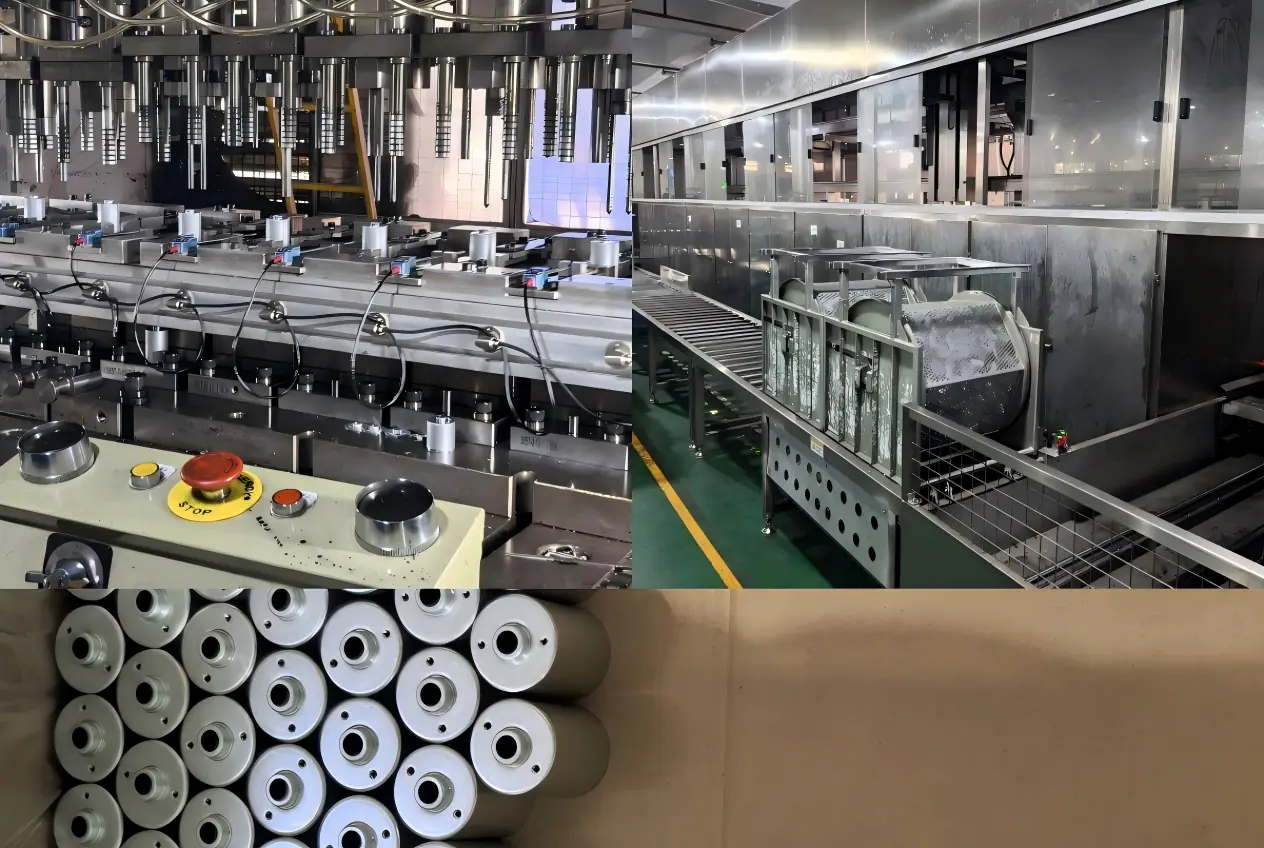

One-Stop Precision Supply Chain
One-Stop Supply Chain: By integrating stamping, CNC machining, and a vast network of certified finishing partners, we handle the complexity so you can focus on your business.
Get a Technical Quote & DFM Feedback within 24 Hours
Contact our experts and we will provide you with the technical precision hardware solutions that best suit your needs.
